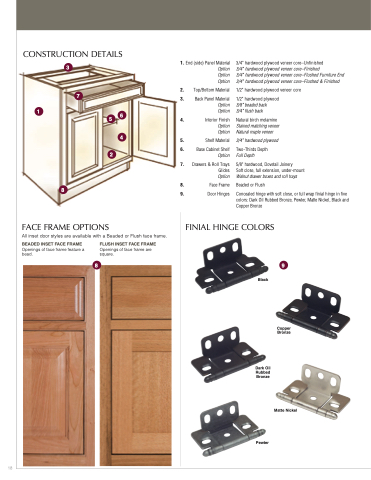

CONSTRUCTION DETAILS
1
6 4
8
3
7
1.
2. 3.
4.
5. 6.
7.
8. 9.
End (side) Panel Material
Option Option Option
Top/Bottom Material
Back Panel Material
Option Option
Interior Finish
Option Option
Shelf Material Base Cabinet Shelf
Option
Drawers & Roll Trays Glides Option
Face Frame Door Hinges
3/4" hardwood plywood veneer core–Unfinished
3/4" hardwood plywood veneer core–Finished
3/4" hardwood plywood veneer core–Flushed Furniture End 3/4" hardwood plywood veneer core–Flushed & Finished
1/2" hardwood plywood veneer core
1/2" hardwood plywood
3/8" beaded back 3/4" flush back
Natural birch melamine
Stained matching veneer Natural maple veneer
3/4" hardwood plywood
Two-Thirds Depth
Full Depth
5/8" hardwood, Dovetail Joinery
Soft close, full extension, under-mount Walnut drawer boxes and roll trays
Beaded or Flush
Concealed hinge with soft close, or full wrap finial hinge in five colors: Dark Oil Rubbed Bronze, Pewter, Matte Nickel, Black and Copper Bronze
5
2
FACE FRAME OPTIONS
FINIAL HINGE COLORS
All inset door styles are available with a Beaded or Flush face frame.
BEADED INSET FACE FRAME
Openings of face frame feature a bead.
FLUSH INSET FACE FRAME
Openings of face frame are square.
89
Black
Copper Bronze
Dark Oil Rubbed Bronze
Pewter
Matte Nickel
